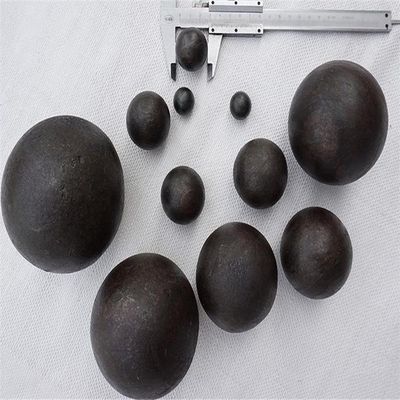

Name: Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready
Brand: Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd
SKU: кованый шар, стальной шар для шлифования
Price: 615.00 USD
Availability: InStock

Главная страница Продукция Шарики горячей завальцовки стальные

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready

Подробная информация о продукте:

Место происхождения:	Город Jinan, провинция Шаньдуна, Китай
Фирменное наименование:	ZW
Сертификация:	ISO9001:2008
Номер модели:	кованый шар, стальной шар для шлифования

Оплата и доставка Условия:

Количество мин заказа:	1 тонны
Цена:	USD 550-680/Ton
Упаковывая детали:	сумки контейнера, стальной барабан
Время доставки:	21 день после подтверждения заказа
Поставка способности:	Годовой объем производства 80000 тонн

контакт

Подробное описание продукта

Измерение:

Обычай

Химический состав:

C: 0,52-0,65%, Si: 0,15-0,37%, Mn: 0,6-1,2%, P: ≤0,025%, S: ≤0,025%

Форма:

Круглый

Категория:

Тестировщики твердости

Выделить:

heat-treated forged steel balls

cement plant steel balls

hot rolling steel balls

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready

Description:

Product Features:

1.The breakage rate less than 1.0%, crush resistance is generally cast ball more than 10 times.
2.The impact toughness of high impact toughness than 12J/cm2: 8 meters, more than 20000 times of falling ball experiment.
3.The high hardness, the surface hardness from 42-68 HRC.
4.No deformation,not out of roundness.
5.Compact structure, high performance-price ratio.

Material	Chemical Elements
Material	C	Si	Mn	P/S	Cr	Hardness (HRC)
45#	0.42-0.50	0.17-0.37	0.5-0.8	<0.035	<0.25	60-65
60MN	0.55-0.65	0.17-0.37	0.7-1.0	<0.04	<0.25	58-63
B2	0.72-0.85	0.17-0.37	0.7-1.0	<0.04	0.4-0.6	55-58
B3	0.58-0.66	1.3-1.9	0.65-0.8	<0.025	0.7-0.9	56-65
B6	0.97-1.03	0.2-0.3	1.0-1.1	<0.025	0.5-0.6	61-65

Hardness

Material	25mm-50mm HRC		60mm-90mm HRC		100mm-125mm HRC		130-150mm HRC
Material	Surface	Core	Surface	Core	Surface	Core	Surface	Core
C45	55-58	55-58	50-68	23-30	48-52	22-26	48-52	22-25
60Mn	58-62	55-60	58-62	30-36	57-61	26-32	57-61	26-30
B2	60-64	58-64	57-64	45-60	55-60	38-48	55-60	38-42
B3	62-65	60-65	60-65	58-65	56-65	50-62	56-63	50-55
B6	62-65	60-65	61-65	58-65	60-63	50-62	61-63	50-55

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 0

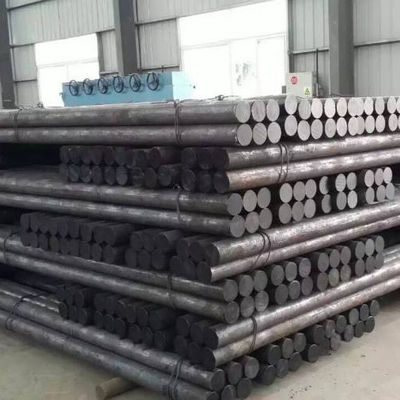

Raw Material:

Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest

factory group in North of China.

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 1

Prodcution Line:

1.Traditional Hammer Forging:

Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing

2. Hot Rolling

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 2

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 3

Testing:

1.Surface quality inspection.
2.Size.
3.Surface hardness test.
4.Core pulling the volume hardness test.
5. The impact toughness test.
6. Metallographic examination.
7. Drop test.

Packing:

Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 4

Certificate:

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 5

Company Profile:

Our company is located in Zhangqiu ,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation. Our company covers an area of 15,000 square meters,with two million registered capital .And there are 150 existing staff,including 21 technicians.
Our main products: forging grinding steel balls,and (high,low,medium) chrome alloyed casting iron balls,casting cylpebs,grinding rods.

Application of our products: various mines,cement plants,power stations and chemical industries.

Priorities of our products: High hardness, good wear resistance, breakage rate lower than 1%.

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 6

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 7

Heat-Treated Forged Steel Balls | Cement Plant Use | Export Ready 8
