Good Quality Good Price High Hardness Factory High Chrome Cast Cement Mill Grinding Media Balls
Advantages
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia12mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.
Forged Ball Details:
| Material |
Chemical Elements |
|
| C |
Si |
Mn |
P/S |
Cr |
Hardness (HRC) |
| 45# |
0.42-0.50 |
0.17-0.37 |
0.5-0.8 |
<0.035 |
<0.25 |
60-65 |
| 60MN |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
<0.25 |
58-63 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
0.4-0.6 |
55-58 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
<0.025 |
0.7-0.9
|
56-65 |
| B6 |
0.97-1.03 |
0.2-0.3 |
1.0-1.1 |
<0.025 |
0.5-0.6 |
61-65 |
|
Material
|
25mm-50mm
HRC
|
60mm-90mm
HRC
|
100mm-125mm
HRC
|
130-150mm
HRC
|
| Surface |
Core |
Surface |
Core |
Surface |
Core |
Surface |
Core |
| C45 |
55-58 |
55-58 |
50-68 |
23-30 |
48-52 |
22-26 |
48-52 |
22-25 |
| 60Mn |
58-62 |
55-60 |
58-62 |
30-36 |
57-61 |
26-32 |
57-61 |
26-30 |
| B2 |
60-64 |
58-64 |
57-64 |
45-60 |
55-60 |
38-48 |
55-60 |
38-42 |
| B3 |
62-65 |
60-65 |
60-65 |
58-65 |
56-65 |
50-62 |
56-63 |
50-55 |
| B6 |
62-65 |
60-65 |
61-65 |
58-65 |
60-63 |
50-62 |
61-63 |
50-55 |
Casting Ball
Types and uses
Forged steel balls: Made by forging, spinning, rolling, etc., with high strength and wear resistance, widely used in industry and mining fields
Cast steel balls: Produced by casting process, including high chromium steel balls, medium chromium steel balls, low chromium steel balls, etc., suitable for cement, thermal power generation, metallurgy and mining industries

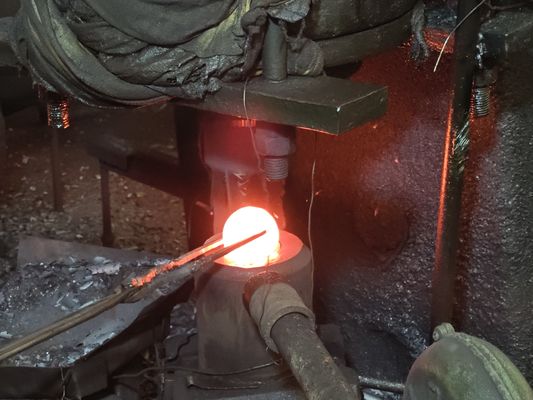

1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering

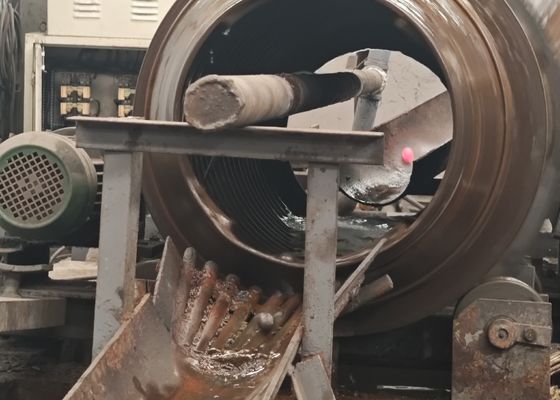

2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
Test
Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.
Packing & Shipping
Steel drum (800-950kg per drum)
Container Bag (1000kg per bag)
Two drums with Pallet
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Question and Answer
1. Which kind of steel balls that you produce?
Our main products are high chrome cast grinding balls, forged balls, grinding cylpebs.
2. What's your warranty?
1 year.
3. Can you provide free sample?
Yes, we are glad to supply free samples. But usually the courier fee should be paid by customer.
4. How about your quality control?
In order to ensure the quality, we have strict quality control system.
a) We will test when purchase the raw materials.
b) We will test the products when finished.
